Grade 13 (120kg Max Door Mass) Stainless Steel Ball Bearing Hinge. Eclipse Ball bearing hinges are synominous with quality and are 100% inspection checked for quality assurance which makes eclipse hinges market leading products. Eclipse stainless steel ball bearing hinges have patented weldcap technology which increases the durability of the hinge and life cycle of the product. CE 2812, UKCA 1121, & Certifire CF336 Approved. BSEN 1935 Performance Tested to Grade 13 and BSEN 1634 Fire Rated FD30, 60, 90, 120 Minute Timber & 240 Minute Steel. Suitable For Commercial & Residential Projects. If being used in a fire door application intumescent hinge pads must be fitted to ensure compliance with regulations. Commonly used on 44mm thick doors. Ball bearing hinges do require maintainence which you can find on our website. 102x76x3mm Hinge size. 12x1.1/2" stainless steel Pozi drive screws.

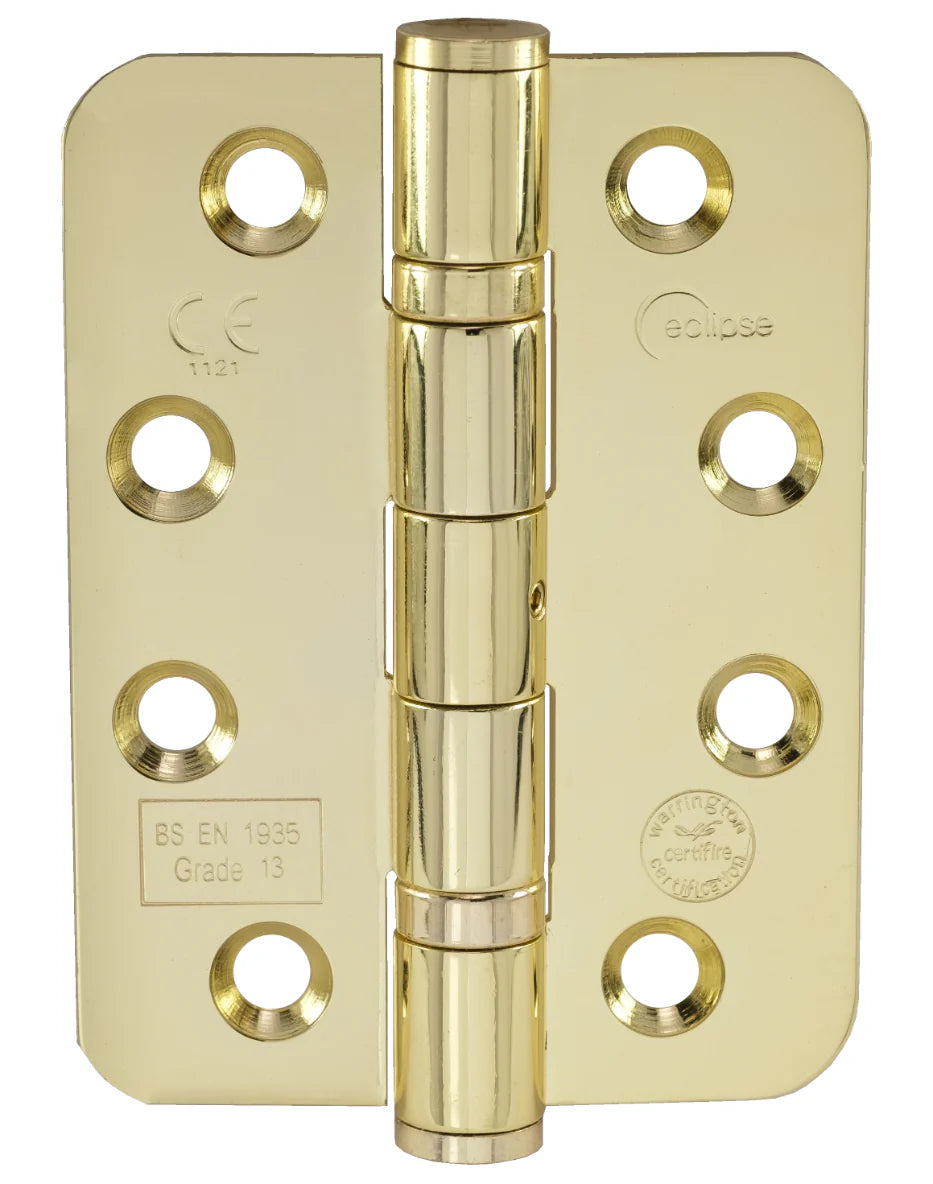

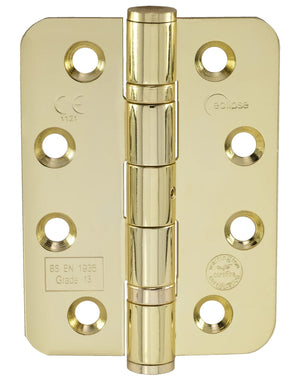

4x3" Grade 13 Ball bearing hinge
Colour: Electro Brass
Fire Rated, CE/UKCA Approved
Size: 102x76x3mm
Comes with fixings
