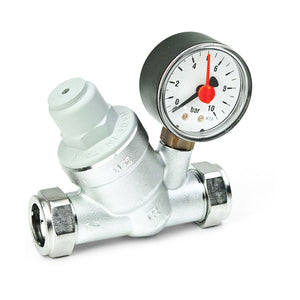

High Performance Pressure Reducing Valve c/w 22mm

The High Performance Pressure Reducing Valve 22mm is a versatile plumbing component designed to regulate water pressure effectively. Here’s a detailed description:

1. Purpose and Functionality:

   • This valve is specifically crafted for both hot and cold water services in homes or flats.
   • It ensures a balanced water supply by regulating pressure, preventing excessive force at outlets like taps and showers.
   • The valve features a specially designed diaphragm for precise pressure adjustment in response to downstream variations.

2. Key Features:

   • Accurate Pressure Regulation: The valve maintains optimal pressure levels, enhancing overall system performance.
   • Low Water Noise: Thanks to the larger outlet chamber’s low departure velocity, water noise is effectively reduced.
   • Scale Prevention: The control stem housing of the cartridge is made from a plastic material with a low coefficient of adhesion, minimizing scale deposits.

3. Technical Specifications:

   • Type: Pressure Reducing Valve
   • Minimum Pressure: 3 bar
   • Maximum Pressure: 16 bar
   • Maximum Diameter: 46 mm
   • Material: Brass
   • Length: 74.50 mm
   • Finish: Chrome
   • Diameter: 22 mm
   • Connection Type: Compression
   • Color: Silver

4. Additional Information:

   • WRAS Approved: Ensures compliance with water regulations.
   • Includes Gauge Port and Pressure Gauge: Convenient for monitoring pressure levels.
   • Versatile Installation: Can be fitted vertically or horizontally.
