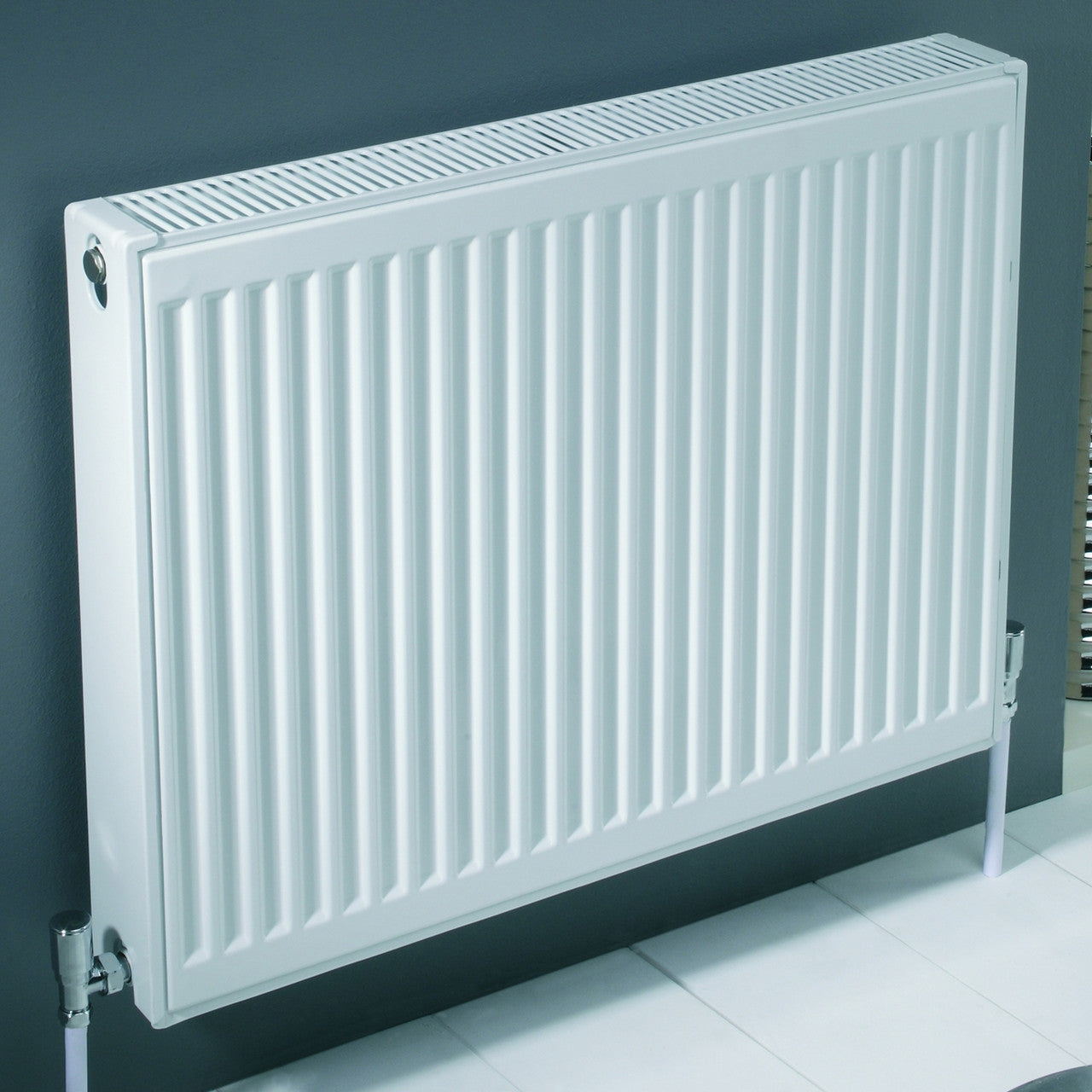

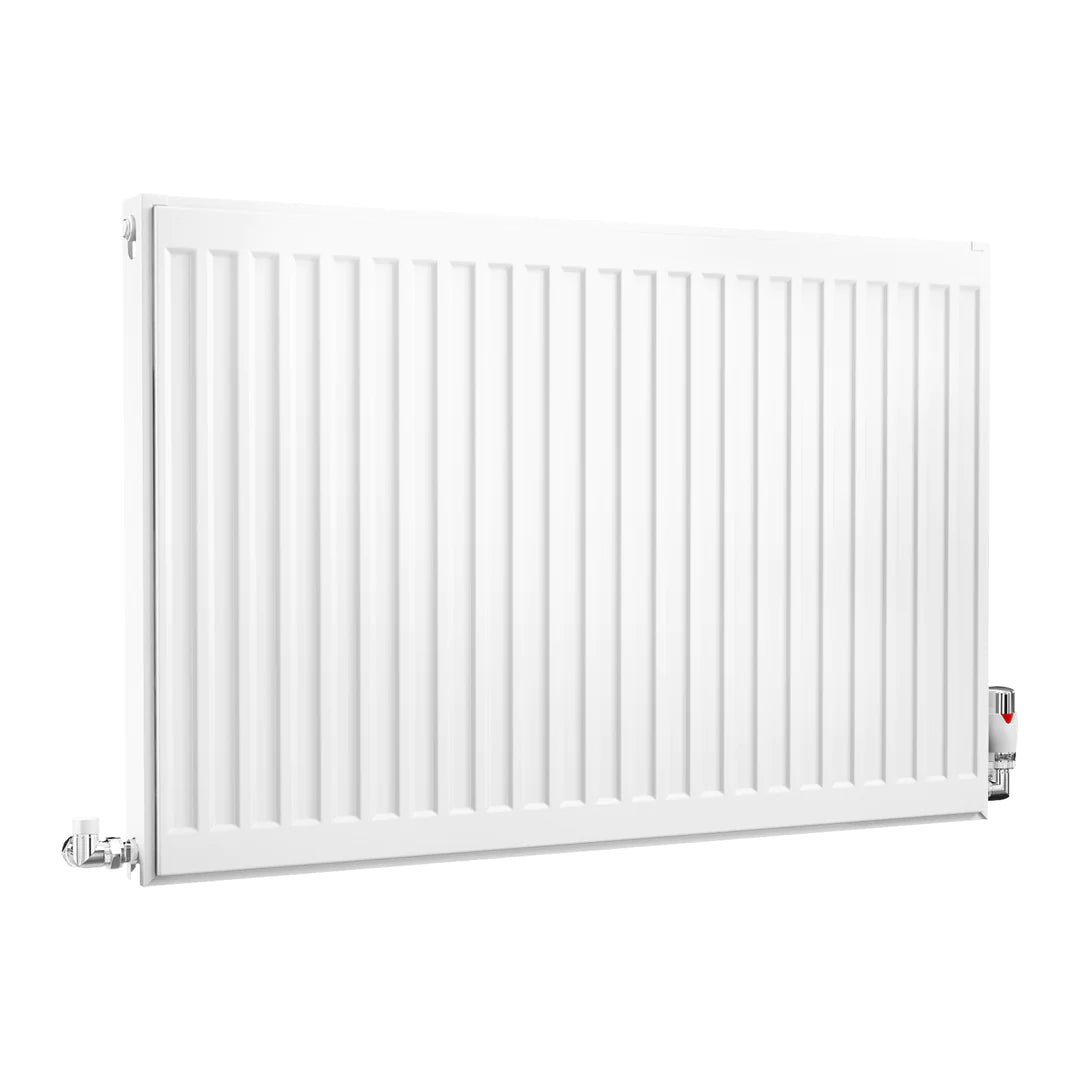

The Kartell K-Rad collection of radiators will enhance any home with space saving classic elegance and efficiency. Comprising over 210 sizes, they are manufactured using the latest state-of the art technology ensuring maximum efficiency. Internally welded with a final coating of white enamel (RAL9016) each radiator is degreased and zinc phosphated before being coated with water-based cathophoratic paint. The final coat is applied using an epoxy polyester electrostatic powder coating system that is baked to a hard finish. You also have the protection of our ‘Kartell No Quibble Guarantee’ against faulty manufacture which lasts for 10 years. All radiators come complete with factory fitted top grille and side panels.

• Stylish compact radiator
• Sturdy and durable construction
• Includes hardware for installation
• Designed for use with central heating systems
• Made to provide high heat output and reliable performance
• Valves not included
• Height (mm): 600

• Width (mm): 900

• Wall to inlet centres (mm): 65 or 80

• Finish: White

• Material – Steel

Installation

Everything required for installation can be found within the robust packaging.

Applications

K-RAD radiators are suitable for two pipe installations. For single pipe applications, it is advisable to use diversion tees in the pipework, as this will assist in obtaining design performance from the radiators. Brackets are of a strong design, with open top and deep slots, which facilitates easy and secure installation. Plastic inserts seat the radiator precisely on the bracket minimizing expansion and contraction noise. The neat nickel-plated plug and vent provide a watertight joint, whilst complementing the superior finish.
